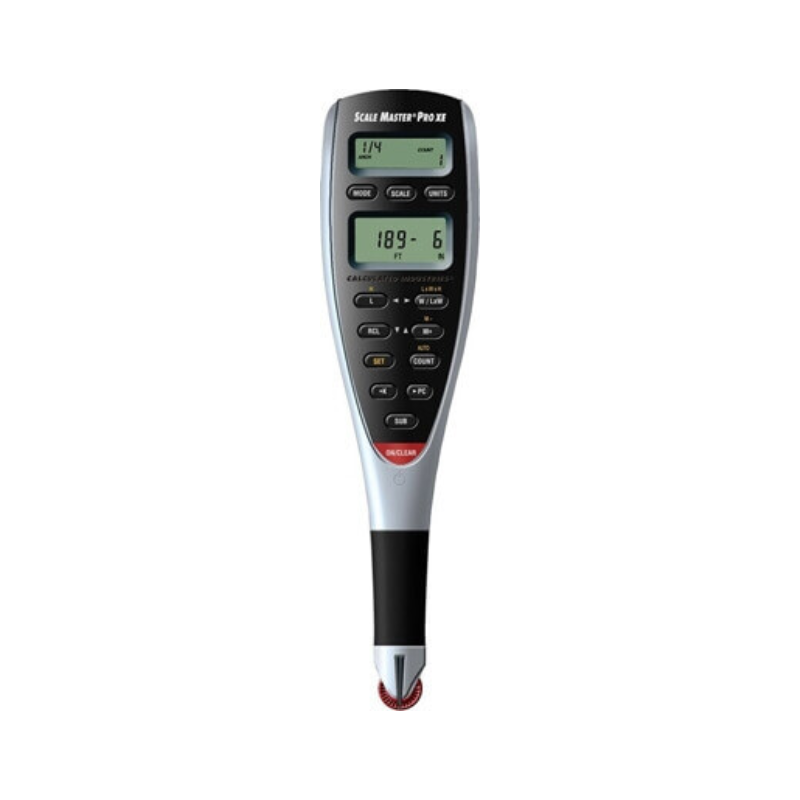

Scale Master Pro XE 6138

Fast and Easy Linear, Area and Volume Takeoffs

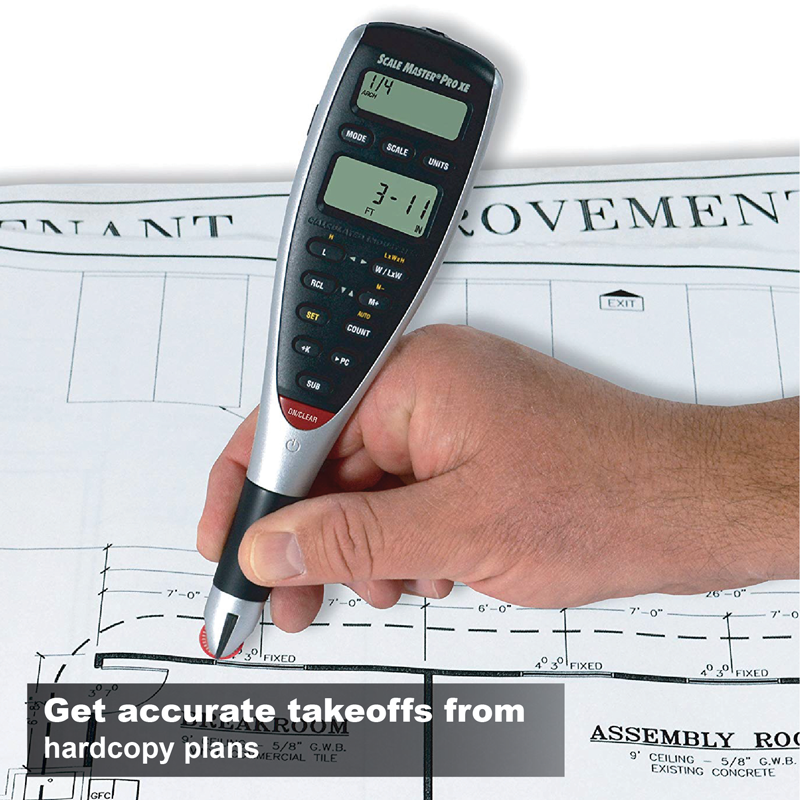

The Scale Master Pro XE Advanced Digital Plan Measure for Blueprint Takeoffs makes it easy to do linear, area and volume takeoffs with speed, accuracy and confidence when estimating, bidding or planning. You can also connect it to your PC with an optional interface cable and transfer rolled values directly into commonly used spreadsheets or estimating programs, saving time and reducing the potential for costly transcribing errors.

91 built-in scales - 50 U.S. (feet-inch) and 41 metric - help you measure plans, blueprints, and maps for maximum versatility in architectural, engineering and civil/map scaling. Save up to 10 custom scales for calibrating out-of-scale plans and plan books. You can easily store a new scale permanently into the device for future use.

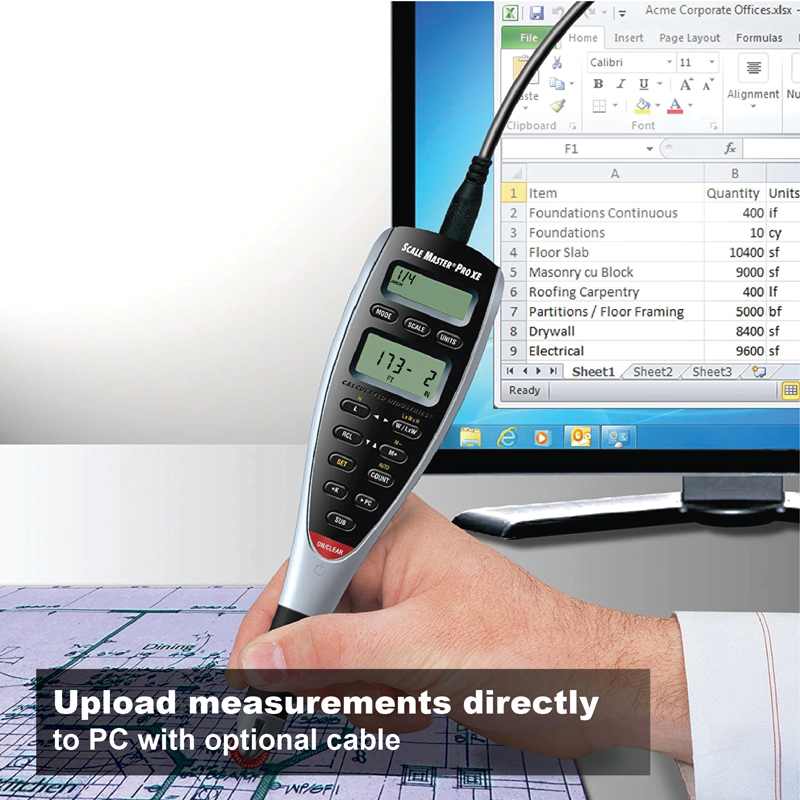

The PC Interface cable (sold separately) lets you transfer rolled values from the Scale Master Pro XE directly into commonly used spreadsheets or estimating programs, saving countless keystrokes, saving time and reducing the potential for costly transcribing errors.

For: Contractors, estimators, engineers, landscapers, excavators, electrical contractors, HVAC, fencing specialists, pavers or anyone needing fast, accurate takeoffs from plans and blueprints.

Details:

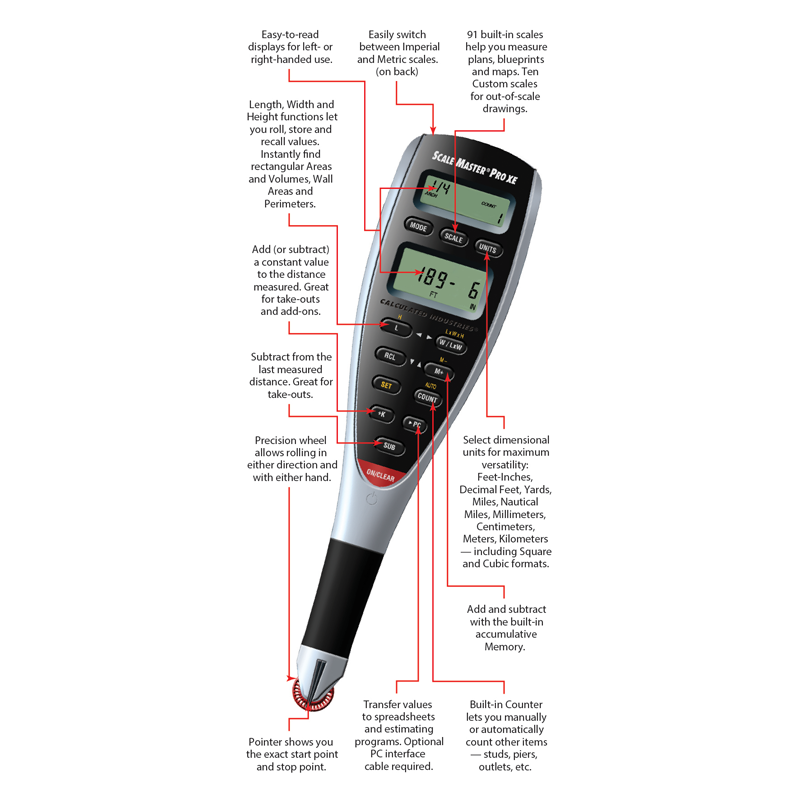

• Complete takeoffs with speed and accuracy
• Reduce errors in estimates and bids
• Improve productivity and maximize profitability
• Create permanent record of dimensions and values
• Interfaces with PC spreadsheets or estimating programs with optional PC interface cable
• Ergonomic design makes it more comfortable to hold, easier to use
• Dual LCD displays show more information
• Count while rolling: push-button counter lets you count items as you roll
• Use the dimensional units best-suited units to fit your work - decimal feet, feet-inches, decimal yards-feet- inches, miles, nautical miles, acres, millimeters, meters, kilometers, and hectares - most available in square and cubic formats
• Ten custom scales: five each for imperial and metric units, lets you roll or define any scale, even from plans that have been reduced, enlarged or are out of scale - permanently store the new scale for future use
• Dedicated length, width and height keys: roll, store and recall LxWxH values and instantly find rectangular areas and volumes
• Auto count feature: automatically counts how many times a pre-set distance has been rolled - great for stud counts, columns, fence posts, outlets, fixtures or any other regularly spaced items

Includes:

• Hard cover protective case
• User's Guide
• Two CR-2032 long-life lithium batteries
• One-year warranty

Tech Specs

Size: 7.3 x 1.9 x 0.6" (186 x 47 x 15 mm)

Product Weight (product only with battery): 2.1 oz. (60 g)

Power: Two 3-volt lithium (CR-2032) batteries (included)

Display Type: LCD segment; 7 digit main display, 3 digit count, 5 digit scale display

Display Dimensions: Upper: 0.62 x 1.22" (15.8 x 31 mm)
Lower: 0.79 x 1.22" (20 x 31 mm)

Accuracy: Mechanical accuracy 99.8%. Users should allow for 2-4% variance for start/stop points and rolling surfaces.

Wheel Resolution: 0.025" (0.635mm)

PC Interface: Requires optional 15' USB interface cable.
